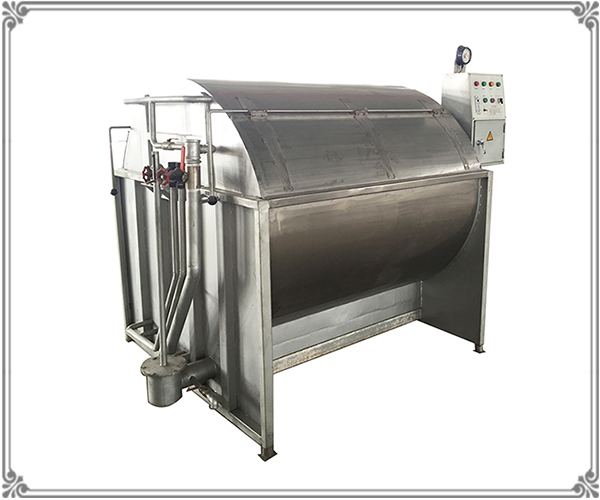

Main Features：
Applicable to linen , cotton , rayon , etc.
Adopts stainless steel manufacturing , mechanical control has advantages of anti-noise , and easy to adjust speed.
mixing blades and direction to make dye liquid , floating with state , dyeing uniformity , strong penetration without damage fabric to be dye.
The main technical parameters of the garment dyeing machine
| Type | Feet | Rated capacity (kg) | Dye vat bore size (mm) | Overall dimensions (mm) | Power (KW) |
| BL-4 | 4 | 25 | 1220×1020 | 1800×1050×1260 | 0.75 |
| BL-5 | 5 | 35 | 1530×1090 | 2210×1220×1410 | 1.1 |
| BL-5.5 | 5.5 | 45 | 1680×1230 | 2260×1360×1560 | 1.1 |
| BL-6 | 6 | 70 | 1840×1430 | 2420×1560×1670 | 1.5 |
| BL-6.5 | 6.5 | 90 | 1990×1600 | 2570×1730×1820 | 1.5 |
| BL-7 | 7 | 140 | 2140×1830 | 2770×1960×1920 | 2.2 |
| BL-8 | 8 | 160 | 2440×1900 | 3070×2040×2480 | 2.2 |
| Bl-9 | 9 | 185 | 2730×1945 | 3420×2085×2075 | 3 |
| BL-10 | 10 | 230 | 3050×2050 | 3790×2190×2175 | 3 |
Main technical parameters of the dyeing machine
| Type | Max. washing capacity (kg) | Speed (r/min) | Power (KW) | Inverter power (KW) | Steam pressure (Mpa) | Water consumption/time (kg) | Drum dimensions (mm) | Overall dimensions (mm) |
| GXF30 | 30 | 5-33 | 1.1 | 1.5 | 0.4-0.6 | 520 | Φ660×800 | 1500×1100×1300 |
| GXF50 | 50 | 5-33 | 1.5 | 2.2 | 0.4-0.6 | 620 | Φ800×980 | 1750×1200×1500 |
| GXF70 | 70 | 5-33 | 2.2 | 3 | 0.4-0.6 | 750 | Φ950×1220 | 2050×1300×1700 |
| GXF100 | 100 | 5-33 | 3 | 4 | 0.4-0.6 | 920 | Φ960×1420 | 2300×1300×1800 |
| GXF150 | 150 | 5-33 | 4 | 5.5 | 0.4-0.6 | 1100 | Φ1060×1650 | 2500×1400×1900 |
| GXF200 | 200 | 5-33 | 5.5 | 7.5 | 0.4-0.6 | 1430 | Φ1080×2000 | 2900×1400×1900 |
| GXF300 | 300 | 5-30 | 7.5 | 11 | 0.4-0.6 | 2100 | Φ1300×2280 | 3200×1930×2200 |
| GXF400 | 400 | 5-30 | 11 | 15 | 0.4-0.6 | 2500 | Φ1220×3360 | 4250×1850×2200 |
Note: due to the continuous upgrading of the equipment, all the parameters and drawings are for reference only. If there is any change, no notice will be given, and the guidance of the scene is welcome.
